46 to 50 GHz Power Divider
,15 Watt Power Divider
-
Place of OriginCHINA
-
MarcaZR Hi-tech
-
Model NumberLT-PD-2S-460500
-
Documento
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T

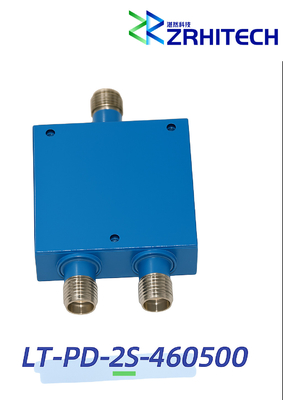

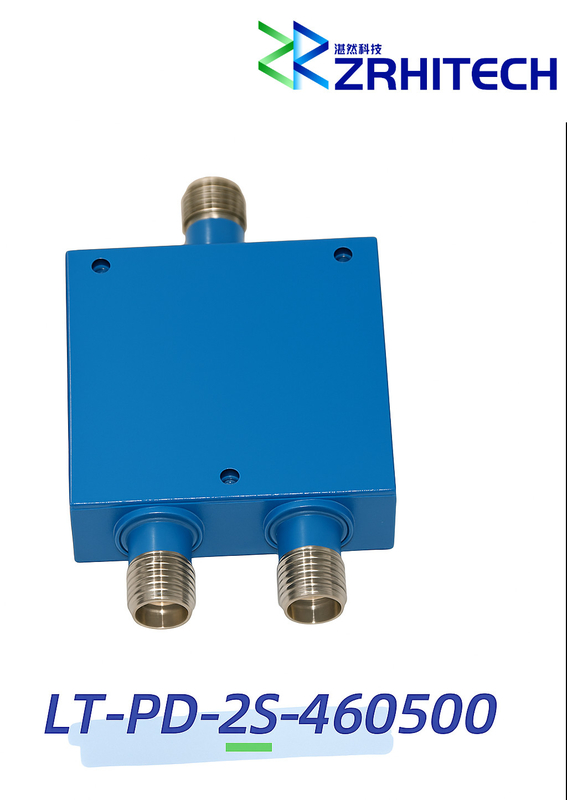

46 to 50 GHz 15 Watt LT-PD Series 2-Way Power Divider
46 to 50 GHz 2-Way Power Divider
Quick Detail:
· 2-Way Power Divider
· Stripline Design
· -55℃~+85℃ operating temperature
· 46 to 50 GHz Frequency Range
· Max Power 15 Watt
· Insertion Loss < 1.8 dB
· Isolation > 20 dB
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-PD-2S-460500 from ZR is a 2-way power divider that operates from 46 to 50 GHz and can handle up to 15 Watt (CW) with 1.8 dB max insertion loss and 20 dB min isolation,The package interface uses 2.92mm-Female connectors and is REACH and RoHS compliant.More details for LT-PD-2S-460500 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Items |
Specification |
Conditions |
|
Part Number |
LT-PD-2S-460500 |
|
|
Frequency Range |
46 to 50 GHz |
|
|
Impedance |
50 Ohms |
|
|
Input VSWR |
1.7:1 Max. |
|
|
Output VSWR |
1.7:1 Max. |
|
|
Insertion Loss |
1.8 dB Max. |
Excluding Nominal Splitter Loss 3.0dB |
|
Isolation |
20 dB Min. |
|
|
Amplitude Balance |
0.6 dB Max. |
|
|
Phase Balance |
10 Degrees Max. |
|
|
Input Power |
15 kW |
|
|
Connectors |
2.92mm-Female |
|
|
Dimension |
21.6x26.9x12.7 mm |
|
|
Note: for custom specs, please contact us directly. |
||
Outline Drawing (Unit: mm):
