2 to 18 GHz Power Divider
-
Place of OriginCHINA
-
MarcaZR Hi-tech
-
Model NumberLT-PD-4S-020180
-
Documento
-
Minimum Order Quantity1
-
Packaging Detailscarton packing
-
Delivery Time4 weeks
-
Payment TermsD/A,D/P,T/T

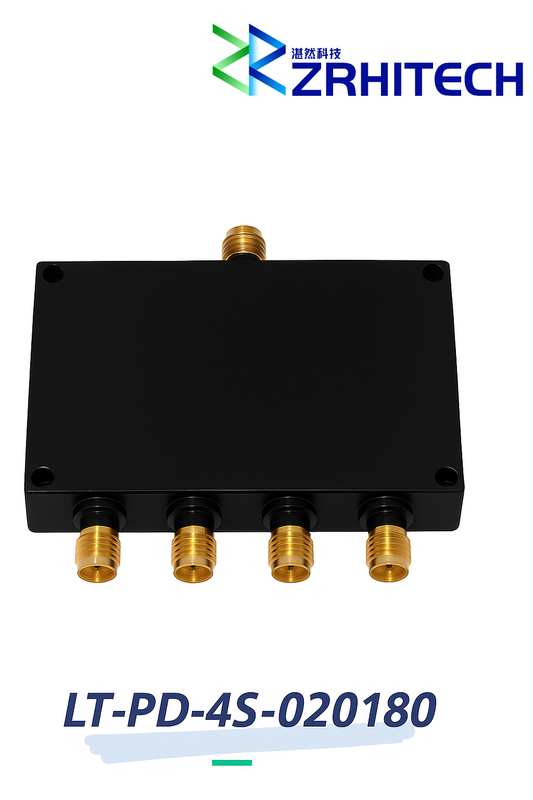

2 to 18 GHz 20 Watt LT-PD Series 4-Way Power Divider
2 to 18 GHz 4-Way Power Divider
Quick Detail:
· 4-Way Power Divider
· Stripline Design
· -55℃~+85℃ operating temperature
· 2 to 18 GHz Frequency Range
· Max Power 20 Watt
· Insertion Loss < 1.9 dB
· Isolation > 17 dB
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-PD-4S-020180 from ZR is a 4-way power divider that operates from 2 to 18 GHz and can handle up to 20 Watt (CW) with 1.9 dB max insertion loss and 17 dB min isolation,The package interface uses SMA-Female connectors and is REACH and RoHS compliant.More details for LT-PD-4S-020180 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Items |
Specification |
Conditions |
|
Part Number |
LT-PD-4S-020180 |
|
|
Frequency Range |
2 to 18 GHz |
|
|
Impedance |
50 Ohms |
|
|
Input VSWR |
1.5:1 Max. |
|
|
Output VSWR |
1.5:1 Max. |
|
|
Insertion Loss |
1.9 dB Max. |
Excluding Nominal Splitter Loss 3.0dB |
|
Isolation |
17 dB Min. |
|
|
Amplitude Balance |
0.6 dB Max. |
|
|
Phase Balance |
10 Degrees Max. |
|
|
Input Power |
20 kW |
|
|
Connectors |
SMA-Female |
|
|
Dimension |
79.2x51.6x12.7 mm |
|
|
Note: for custom specs, please contact us directly. |
||
Outline Drawing (Unit: mm):
