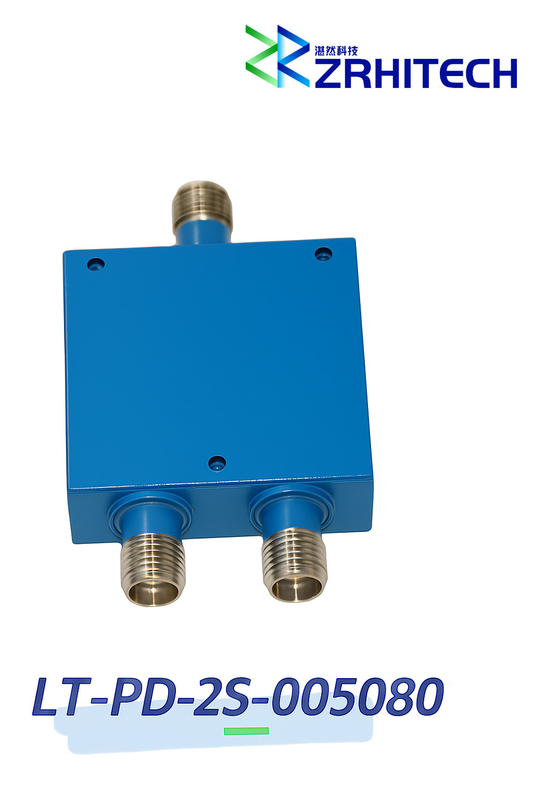

0.5 to 8 GHz 20 Watt LT-PD Series 2-Way Power Divider
0.5 to 8 GHz 2-Way Power Divider
Quick Detail:
· 2-Way Power Divider
· Stripline Design
· -55℃~+85℃ operating temperature
· 0.5 to 8 GHz Frequency Range
· Max Power 20 Watt
· Insertion Loss < 1.2 dB
· Isolation > 18 dB
· CE, RoHS, REACH compliant
· 1 Year Warranty
Description:
The LT-PD-2S-005080 from ZR is a 2-way power divider that operates from 0.5 to 8 GHz and can handle up to 20 Watt (CW) with 1.2 dB max insertion loss and 18 dB min isolation,The package interface uses SMA-Female connectors and is REACH and RoHS compliant.More details for LT-PD-2S-005080 can be seen below.
Specifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Items |
Specification |
Conditions |
|
Part Number |
LT-PD-2S-005080 |
|
|
Frequency Range |
0.5 to 8 GHz |
|
|
Impedance |
50 Ohms |
|
|
Input VSWR |
1.4:1 Max. |
|
|
Output VSWR |
1.4:1 Max. |
|
|
Insertion Loss |
1.2 dB Max. |
Excluding Nominal Splitter Loss 3.0dB |
|
Isolation |
18 dB Min. |
|
|
Amplitude Balance |
0.4 dB Max. |
|
|
Phase Balance |
6 Degrees Max. |
|
|
Input Power |
20 kW |
|
|
Connectors |
SMA-Female |
|
|
Dimension |
149.2x26.4x12.7 mm |
|
|
Note: for custom specs, please contact us directly. |
||
Outline Drawing (Unit: mm):
